GLOVE KNITTING MACHINE

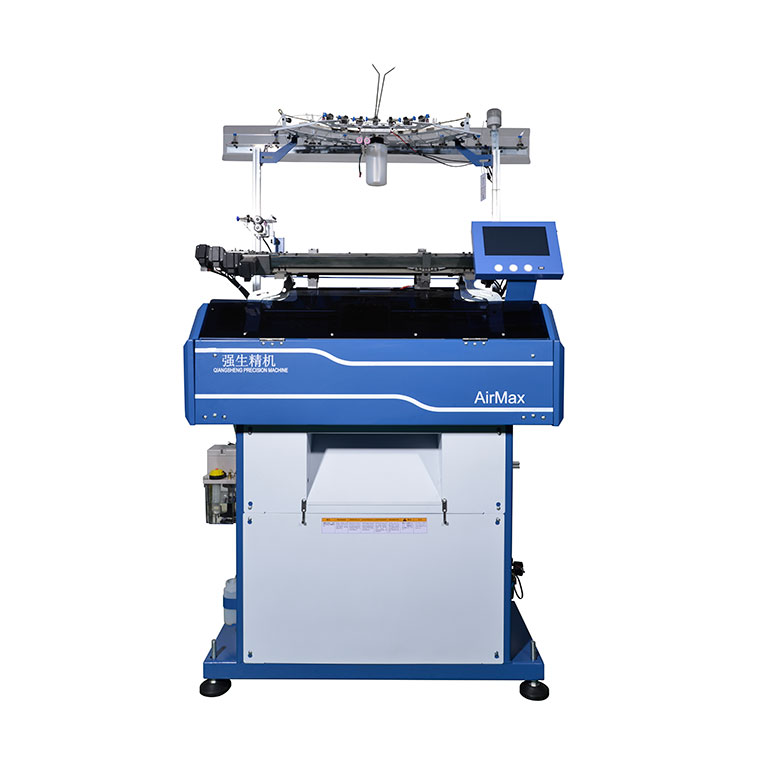

ArMax7G/10G/13G multi-functional & high-efficiency jacquard knitting machine

< >

AirMax series computerized jacquard machine adopts Single carriage with single-system. These series are used digital technology to achieve the knitting functions of tuck, pick, and jacquard, apparent shape, hidden shape and other regular pattern knitting functions of glove machine. It can knit basic single or double jersey plain fabric, irregular multi-colors jacquard, cable structure patterns and so on. It is suitable for knitting gloves, socks, scarves and clothing accessories from real thread, spun silk, synthetic fiber, wool, acrylic, blended, yarn and other raw materials. The most advanced yarn feeder we called “self-running system”. It can automatically arrange 8 yarn feeders, and can automatically adjust the knitting position of the yarn feeders, which can effectively avoid the phenomenon of overlapping yarn feeders; at the same time, the system can realize multiple yarns merge weaving in the same line. It easily completes the weaving work of complex patterns such as intarsia and garment knitting, which greatly improves the production efficiency.

This model adopts Dahao system, equipped with small carriage and fast rotation technology, which greatly shortens the weaving time, and improves the working efficiency by about 25% compared with the traditional old machine (specifically, the efficiency will vary according to the width of the fabric).

Specifications

Gauge	7G ， 10G,13G
Knitting system	Single carriage
Machine speed	The maximum speed is 1.6m/s
Needle actuator	6section electronic needle actuator
Tight tuck	Tight tuck cam controlled by motor, achieve different tightness of the tight tuck.
Yarn forward device	Yarn feeder and yarn storage device(optional),accurate control of yarn tension, to ensure the quality of the overall quality of the fabric
Yarn feeder	8 yarn carriers are arranged on the left and right sides
Transmission system	Belt drive, AC servo motor control.
Data input	Input and output patterns via USB, PC and Internet
Protection system	Automatic stopping device if yarn broken, yarn knot, batching, striking, completion, overload, designated starting and stopping, program error
Safety device	The whole machine cover to reduce noise and dust, the protecting cover is equipped with stopping sensor, emergency stopping and power off device
Control system	1. DA HAO system 2. The screen adopts LCD touch screen display, graphical interface, can store a large number of pattern files, and can be called at any time according to production needs. 3. Through the screen checking page, you can view the working status and actual position of the cam; and adjust it at any time while the machine is running, which is most convenient for operation. 4. The control system (software part) and the pattern-making system are easily upgraded and are free of charge. 5. Multi-language version switching (Chinese, English, Russian, etc.)

Model	Size	Dimension (LWH)	Voltage	Power	Rotating Speed	Average Capacity （ pair ）	Average Power Consumption Per Set （ kWh ）	Electricity Consumption Per Pair （ kWh ）
7G	M	11009001350	220V	260W	300r	250	4.5	0.019
10G	M	11009001350	220V	260W	300r	230	4.3	0.019
13G	M	11009001350	220V	260W	300r	190	4.2	0.023
